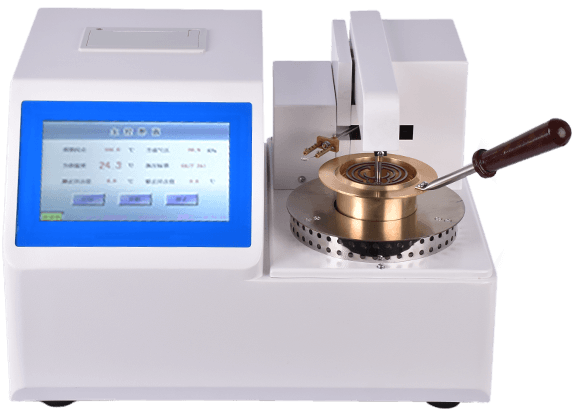

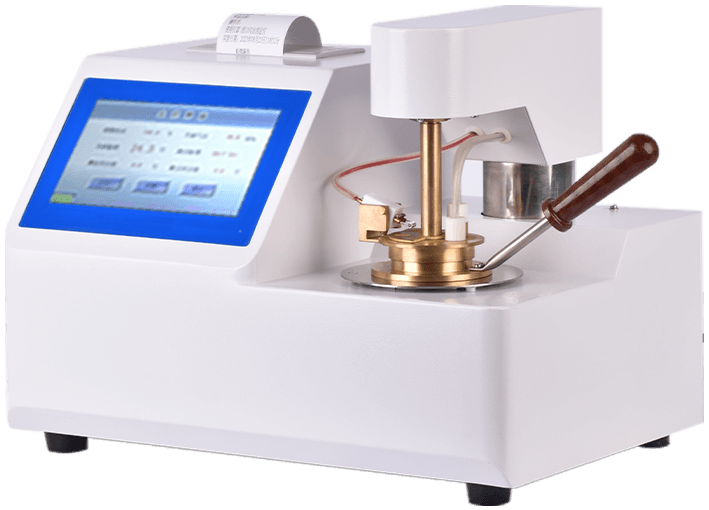

Closed Cup Flash Point Detector

Closed Cup Flash Point Detector, primarily used for determining the closed cup flash point value of petroleum products. The instrument employs ARM microprocessor technology, a 7-inch color touchscreen, and Chinese menus for enhanced user-friendly interaction. The instrument features power-off data retention, automatic ignition, display, result locking and printing, and automatic cooling functions. It offers high measurement accuracy, excellent repeatability, stable and reliable performance, and simple operation. Widely used in power, petroleum, chemical, commodity inspection, and research sectors, it complies with ASTM D93 and GB/T 261-2008 standard methods.

• The display features a genuine imported 7.0-inch true-color TFT-LCD screen; the keyboard employs a human-sensing touchscreen. With a fully Chinese interface, it offers a refined, intuitive, and elegant display, ensuring convenient operation and effortless touch control.

• Historical data is stored in NVM memory, capable of retaining 20,000 data points. Data remains preserved for 10 years without loss and cannot be altered.

• The printer utilizes a miniature embedded thermal printer, ensuring quieter, faster, and clearer printing.

• Temperature measurement and control utilize an original imported PT100 platinum resistance temperature sensor, high-precision AD converter, excellent linearization mathematical model, and unique control algorithm, enabling faster, more accurate, and stable temperature measurement and control.

• Ignition employs electronic flame direct ignition, identical to gas flame ignition, ensuring safety, convenience, speed, reliability, and interference-free operation.

• Flashback detection utilizes high-frequency ion ring flame detection technology, enabling instantaneous and accurate capture of sample flashbacks to prevent false positives and false negatives.

• Atmospheric pressure measurement utilizes a fully digital atmospheric pressure sensor imported from Germany, providing real-time measurement of local atmospheric pressure and automatically correcting the impact of atmospheric pressure changes on measurement data.

• Automatically completes operations including heating, detection, calculation, and printing.

• The instrument heats according to the temperature curve specified in ASTM D93 and GB/T261-2008 methods. It automatically ignites when the temperature approaches the flash point value. Upon reaching the flash point, the instrument automatically locks the display, prints the results, and simultaneously cools the heater.
