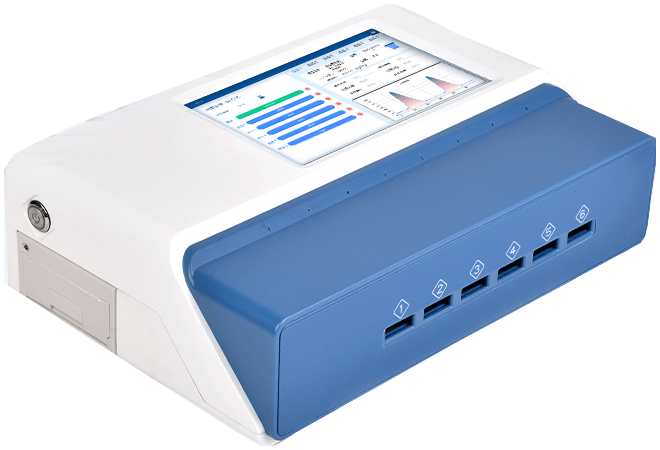

Multi-channel mycotoxin analyzer

The multi-channel mycotoxin detector employs a fluorescent quantitative rapid detection principle, primarily used to measure mycotoxin levels in grains, oils, cereals, and feed, including aflatoxins, zearalenone, vomitoxin, fumonisin, ochratoxin, T-2 toxin, and others. The samples tested include grains and cereals (rice, corn, wheat, barley, sorghum, etc.) and their products, feed and its raw materials, edible oils, milk and its products, etc.

Sample pretreatment is simple, and the entire detection process takes 12 minutes. It is suitable for local grain warehouses, grain production enterprises, feed mills, various livestock farming enterprises, flour mills, food processing plants, third-party testing institutions, and government regulatory departments at all levels.

• Intelligent human-machine interaction: Android smart operating system, 7-inch high-definition color touch screen, simple and intuitive operation.

• Operating System: Built-in Android operating system, runs smoothly, supports online updates, and can connect to Wi-Fi.

• Detection Principle: Uses fluorescent immunoassay principle, high accuracy, and more precise readings.

• Extremely High Detection Stability: Uses imported fluorescent microspheres with uniform particle size, ensuring stable instrument operation and addressing industry-wide issues of reproducibility fluctuations within and between batches.

• Integrated Design: Incubation and detection are fully integrated; results can be read directly after a 10-minute reaction, eliminating errors caused by human operation.

• Multi-channel design: Six independent detection channels allow simultaneous testing of one or multiple parameters, enhancing efficiency without interference.

• Built-in calibration curves: The instrument comes pre-loaded with quantitative standard curves, eliminating the need to recreate curves using standards during testing. This reduces testing costs and minimizes operator exposure to mycotoxins, ensuring safety.

• Standard curve upgrade: Remote OTA upgrade.

• Data transmission: Two USB Type-A ports, one USB Type-B port, one direct network port, and built-in Wi-Fi connectivity, supporting multi-mode data transmission under various conditions.

• Data storage: Stores over 100,000 entries, with built-in query, statistics, and batch data processing functions.

• Result display: In addition to built-in data viewing, the instrument is equipped with a thermal printer for real-time printing of test results.

• 3-minute operational state (37°C), closed system, unaffected by external environmental factors (light, heat).

• Equipped with an 800×340×540mm precision instrument carry case, military-grade shockproof/IP54 waterproof, silent swivel wheels + aviation-grade aluminum alloy, lightweight design for enhanced portability.
