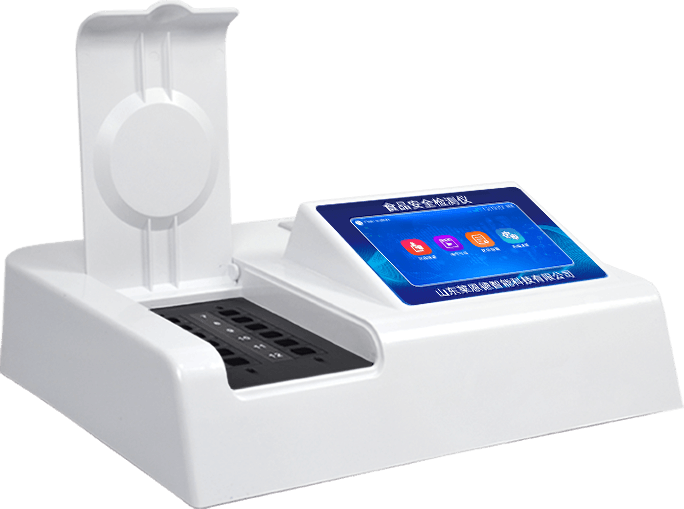

Fungal Toxin Rapid Detection Device

The fungal toxin rapid detection instrument utilizes the principle of competitive inhibition immunoassay technology. It analyzes the residual fungal toxins in the sample by detecting the binding of the target substance with antibodies. It can rapidly detect mycotoxins such as aflatoxin B1, T-2 toxin, zearalenone, vomitoxin, ochratoxin, and fumonisin in grains, feed, cereals, edible oils, and seasonings, including corn, rice, wheat, barley, brown rice, bran, rice husks, soybean meal, rice bran, and feed.

This fungal toxin rapid detection instrument is an integrated rapid detection and analysis device, suitable for use by units such as grain and oil systems, grain stations, grain and oil monitoring centers, grain and oil feed production and processing, food processing and trade, and livestock and poultry farmers for self-inspection and market rapid screening, among others.

• The main control chip uses an ARM Cortex-A7, RK3288/4-core processor with a clock speed of 1.88 GHz, offering faster operation and enhanced stability.

• Android smart operating system with more efficient and user-friendly operation. The main control uses a multi-core processor, offering faster operation and enhanced stability.

• An integrated portable rapid testing device with an industrial-grade ABS engineering plastic case, making it easy to carry, durable, and suitable for on-site and mobile testing applications.

• Automatically determine whether samples are qualified, with more intuitive test results. Multiple samples can be tested continuously, with cyclic testing, immediate testing upon placement, and automatic incrementing of sample numbers.

• The instrument is equipped with a regulatory platform, enabling data upload via local area networks and the internet. Testing results are directly transmitted to the food safety regulatory platform for regional food safety supervision, big data analysis, and statistical processing, monitoring short-term and long-term food safety trends in the region to achieve food safety issue prediction and early warning.

• The instrument has a powerful built-in database with a menu library of various sample names, categorized management, and flexible selection of testing samples, testing indicators, and testing units. Users can edit and input sample names, testing indicators, and testing units as needed, add or delete names, and save them to the sample database.

• The device has Wi-Fi networking functionality and 4G signal GPRS remote transmission functionality. It can be connected to a mobile phone SIM card to enable data remote transmission, allowing data to be quickly uploaded to a computer and server regulatory platform for data management and statistics.

• Features a new-generation high-speed thermal printer that automatically prints test reports and QR codes upon completion of testing. The printed report includes the tested substance, pass/fail status, testing unit, inspected unit, inspector, and testing time.

• Highly intelligent with self-testing functionality: includes power-on self-testing and zeroing functions, as well as automatic repeatability testing functionality.

• All testing projects can be conducted under the same software, with test results displayed intuitively through a single window.

• CT line automatic recognition, no manual adjustment required.

• Automatic adjustment and calibration of light source brightness.

• Simple and effortless sample handling, with overall operation being fast, safe, and convenient.

• The instrument features recalibration, lock, and factory reset functions.

• High sensitivity, high detection accuracy, high repeatability accuracy, and a scanning high-precision optical sensor.

• Equipped with self-protection functions, including the ability to set usernames and passwords to prevent unauthorized personnel from operating the device.

• Immunochromatographic detection module detection method: track-based automatic transmission scanning, with the test card automatically ejected after detection is complete.

• Display method: 7-inch LCD touchscreen display with a user-friendly Chinese interface, providing intuitive and simple readings.

• Standard USB interface, driver-free installation, and support for USB storage. The result judgment line can be modified, and the reference values and calibration values can be saved, with no data loss in case of power failure.

• AC/DC dual-use, 12V DC power supply, can be connected to a vehicle power source, and can be equipped with a 6Ah high-capacity rechargeable lithium battery for convenient outdoor mobile testing.

• Intelligent constant current voltage regulation, automatic light intensity calibration, and no temperature drift of the light source during prolonged continuous operation.

• Built-in new national limit standards, enabling on-site comparison with test results, and continuous updates to standards.

• Compatible with all detection cards on the market, with no restrictions on consumables, significantly enhancing user experience.

• Test items can be expanded, and firmware can be upgraded.
