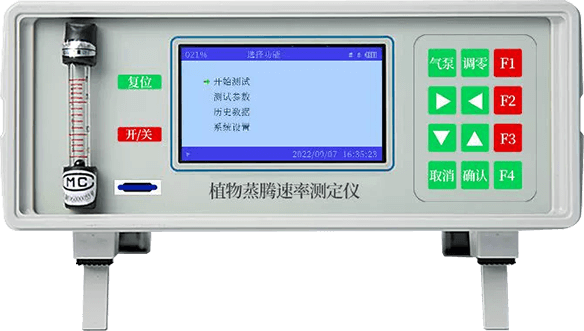

Plant Transpiration Rate Meter
- Product Number:LD-ZT10
- Product Difference:Measure leaf temperature, photosynthetically active radiation (PAR), air temperature, air humidity, transpiration rate, stomatal conductance, and stomatal resistance
+86 19353291814
Online ConsultationProduct Introduction
The transpiration rate of plants refers to the speed at which water passes through the plant body and is released into the atmosphere as gas through the plant's surface (primarily leaves). Transpiration generates a transpiration pull, which serves as the primary driving force for passive water uptake and transport within plants. This is particularly crucial for tall trees.
Transpiration facilitates the transport of substances within xylem sap. Mineral salts from the soil and substances synthesized by the root system can be transported and distributed throughout the plant as water is absorbed and collected.
Transpiration also lowers the plant's temperature and prevents leaf scorching. This occurs because water has a high latent heat of vaporization, allowing significant radiant heat to be dissipated during the transpiration process.
Normal transpiration facilitates CO₂ assimilation, as open stomata during transpiration create pathways for CO₂ entry into leaves.
Therefore, crop transpiration rate meters hold significant importance for agricultural research, education, horticultural studies, and forestry research.
Product Features
3.5" TFT true color LCD display with 800×480 resolution, clearly visible in bright light.
High-capacity 8.4V rechargeable lithium battery provides 20 hours of continuous operation per charge.
Large storage capacity: 16GB internal memory, expandable to 32GB.
Data transfer: Directly export data via USB connection to a computer.
Buttons: Simple and convenient button operation.
Product parameters
| Test Parameters | Leaf Temperature, Photosynthetically Active Radiation (PAR), Air Temperature, Air Humidity, Transpiration Rate, Stomatal Conductance, Stomatal Impedance |
| Air Temperature | Swiss-imported high-precision digital temperature sensor ① Measurement Range: -20 to 80°C; ② Resolution: 0.1°C; ③ Accuracy: ±0.2°C |
| Leaf Temperature | Platinum Resistance Thermometer ① Measurement Range: -20 to 60°C; ② Resolution: 0.1°C; ③ Accuracy: ±0.2°C |
| Humidity | High-precision digital humidity sensor imported from Switzerland ① Measurement range: 0-100%; ② Resolution: 0.1%; ③ Error: ≤±3% |
| Photosynthetically Active Radiation (PAR) | Silicon photodiode with correction filter ① Measurement range: 0-3000 µmol m⁻² s⁻¹; ② Accuracy: <5 µmol m⁻² s⁻¹ |
| Micro Flow Meter | Flow rate freely adjustable within 0-1.5 L range, stable airflow; Error: 1%, within 0.2–1 L/min range <±0.2% |
| Leaf Chamber Dimensions | Standard size 55×20mm, customizable per customer requirements |
Operating Environment | Temperature: 20°C–50°C, Relative Humidity: 0–100% (no condensation) |
| Power Supply | High-capacity DC 8.4V rechargeable lithium battery provides 20 hours of continuous operation per charge (without external light source) |
| Dimensions & Weight | 260×260×130mm, main unit 3.25kg |
