Precision to Productivity: Unlocking the Performance Advantages of Laboratory Planetary Ball Mills

　　Laboratory planetary ball mills achieve high-precision and high-efficiency sample processing through their unique planetary motion principle. As a representative product in this field, the LANDTEK planetary ball mill demonstrates significant advantages in materials science, biomedicine, environmental testing, and other areas,thanks to its precise control, high efficiency, versatility, and safe, eco-friendly design.

　　1. Intelligent Control for Precision Grinding

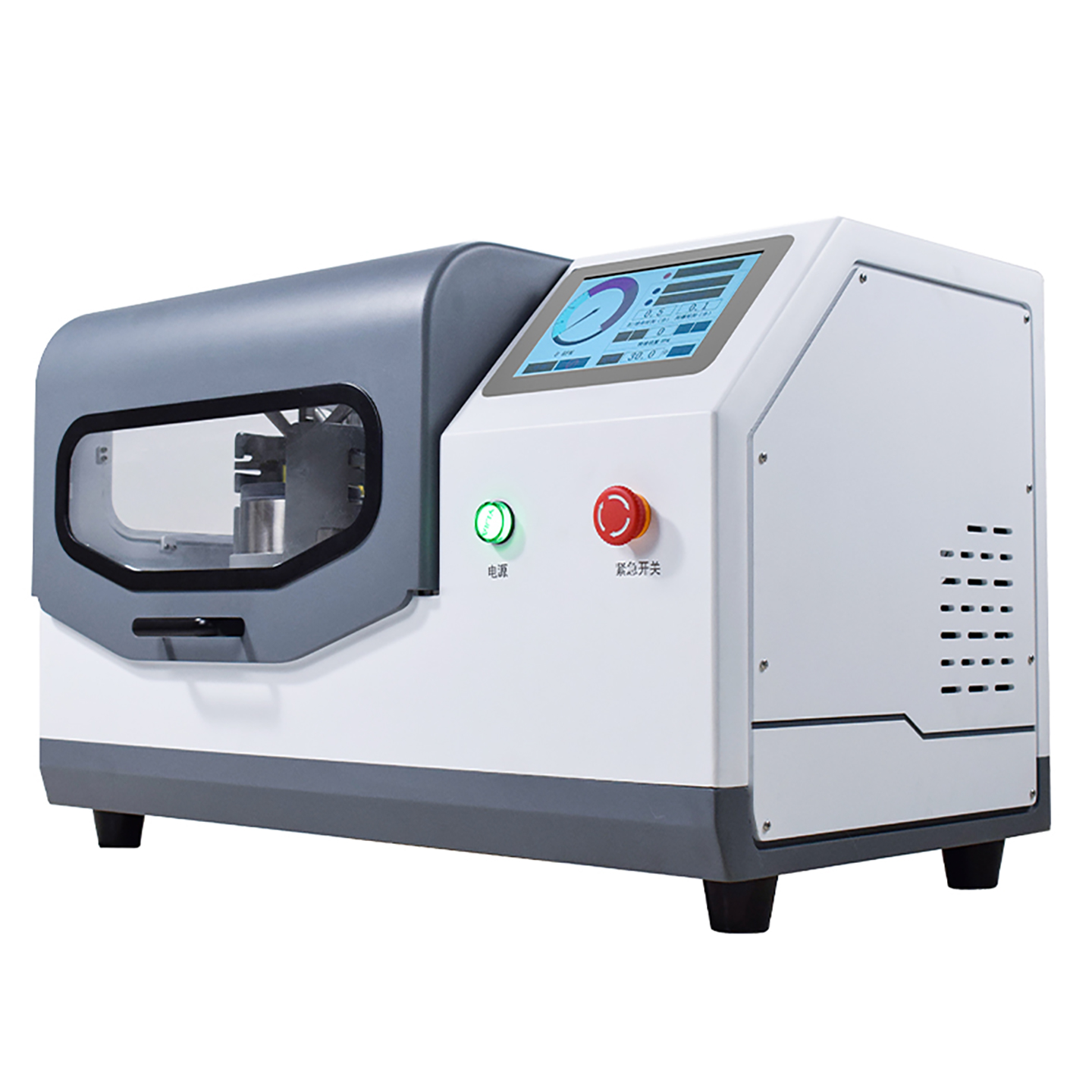

　　The LANDTEK planetary ball mill operates on a planetary gear transmission principle, causing the grinding jars to rotate on their own axes while simultaneously revolving around the central axis, creating a complex multi-dimensional motion trajectory. The instrument is equipped with a 7.0-inch color LCD touch screen and a wireless remote control, supporting remote operation for start, stop, acceleration, deceleration, and mode switching (unidirectional continuous, unidirectional interval, bidirectional alternating). Users can precisely set the revolution and rotation speeds, grinding time (0.1-9999.9 minutes), and alternating operation intervals, achieving full digital control over the grinding process. Certain models also feature probe-based particle size measurement technology, enabling real-time monitoring of sample particle size distribution to ensure grinding precision.

　　2. Diverse Grinding Configurations

　　A variety of grinding jar and grinding ball materials are available, including agate, ceramic, zirconium oxide, and stainless steel, to accommodate samples with different hardness, viscosity, and chemical properties. For instance, tungsten carbide grinding balls are required for hard alloy samples, while polytetrafluoroethylene (PTFE) jars are chosen for biological samples to avoid contamination. The diameter and quantity of grinding balls are configured according to a specific ball-to-material ratio, ensuring synergistic action between larger balls (responsible for coarse crushing) and smaller balls (responsible for fine refinement) to optimize grinding efficiency.

　　3. Efficient Output and Energy Saving

　　The LANDTEK planetary ball mill optimizes motion trajectory and kinetic energy transfer, significantly reducing grinding time. For example, a soil sample with a maximum feed size of 12mm can achieve an output particle size of 0.1μm (100nm) after just 30 minutes of grinding, meeting the requirements for analysis techniques like X-ray fluorescence (XRF) and scanning electron microscopy (SEM). The instrument supports continuous operation for up to 90 hours and consumes 30% less electricity compared to traditional ball mills, making it suitable for high-volume sample processing.

　　4. Safety, Stability, and Data Integrity

　　A fully enclosed grinding chamber with observation windows on four sides, combined with an emergency stop button and overload protection function, prevents dust leakage and equipment damage. The power-off memory function allows the instrument to resume unfinished tasks, reducing operational risks. Additionally, the instrument is equipped with a cooling system to prevent sample degradation or equipment malfunction due to excessive heat.

　　5. Ease of Use and Low Maintenance

　　The modular design facilitates easy cleaning and part replacement, with grinding jars and balls allowing for quick disassembly. A 5-year warranty and 24-hour after-sales service help minimize long-term operating costs. For optimal performance, it is recommended to fill one-third of the grinding jar volume with balls and two-thirds with sample material to avoid overload operation.

　　6. Application Scenarios: Cross-Domain Efficient Solutions

　　Materials Science: Used for metal powder surface treatment, ultra-fine processing of ceramic raw materials, and nanomaterial synthesis. For example, using wet grinding method to mill zirconia powder to the nanoscale enhances the density and mechanical properties of ceramic materials.

　　Biomedicine: Enables cell disruption, protein purification, and drug nanonization. For instance, using cryogenic wet grinding for biological samples prevents the degradation of active components due to heat.

　　Environmental Testing: Applied in soil heavy metal analysis and solid waste pretreatment. Grinding contaminated soil to the micrometer level, for example, allows for accurate heavy metal content detection via XRF, providing data support for environmental remediation.

　　New Energy: In solar cell preparation, it is used for mixing and grinding silicon raw materials with other additives to improve photoelectric conversion efficiency. Dry grinding, for example, can refine silicon powder to below 10μm, optimizing the cell structure.

　　Conclusion

　　The LANDTEK planetary ball mill, with its core planetary motion principle, integrates intelligent control, diverse configurations, and safety features to become an ideal tool for efficient sample processing in laboratories. Its precise control capability, high-efficiency output performance, and cross-disciplinary application potential provide crucial support for innovation in materials R&D, environmental testing, and biomedicine, driving laboratory technology towards greater intelligence and refinement. By significantly shortening experimental cycles and reducing production costs – for instance, increasing grinding efficiency by 50% and improving particle size distribution uniformity by 30% in nanomaterial research compared to traditional equipment – it demonstrates clear performance advantages. Furthermore, its compatibility with various detection standards (e.g., ASTM, ISO) assists enterprises in obtaining international certifications.
