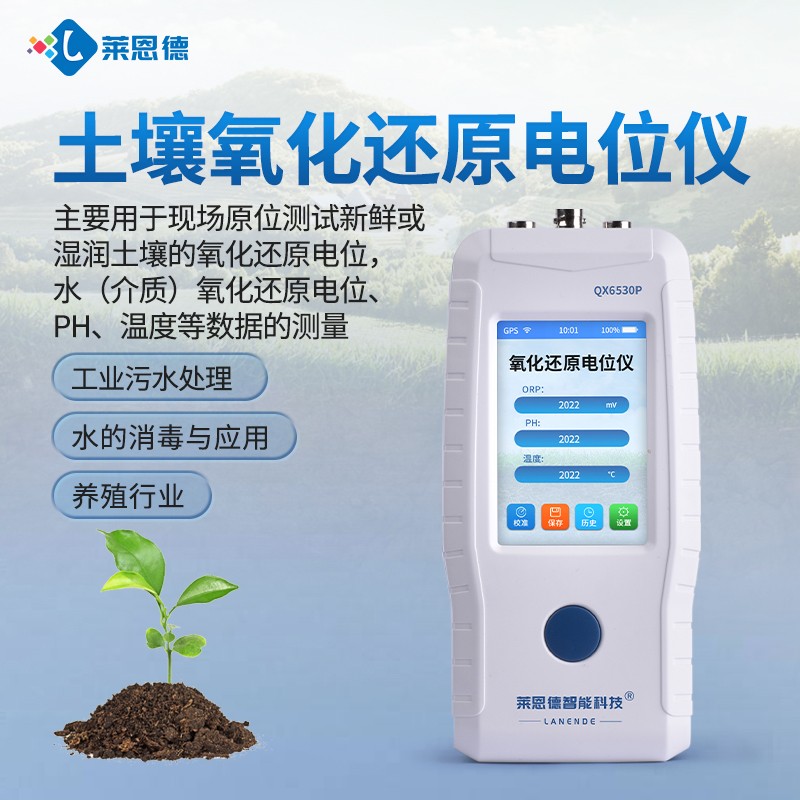

LD-QX6530P Soil Redox Potential Meter: High-Precision In-situ Testing for Soil Environmental Analysis

Core Performance Meets HJ746-2015 Standard for Reliable Soil Testing

As a critical comprehensive indicator of soil environmental conditions, soil redox potential (ORP/Eh) directly reflects the relative oxidation or reduction level of the medium, and has a decisive impact on soil chemical and biological processes. The LD-QX6530P soil redox potential meter is fully designed to comply with the official HJ746-2015 Potentiometric Method for Soil Redox Potential Determination standard, ensuring all test outputs are authoritative, traceable and suitable for formal research, regulatory and industrial use cases. This instrument supports simultaneous measurement of multiple core parameters, including soil ORP ranging from -2000mV to 2000mV with 0.1mV resolution and ±10mV error margin, soil pH across 0 to 14 with 0.1 resolution and 0.05 error margin, and soil temperature from 5℃ to 60℃ with 0.1℃ resolution and ±1℃ error margin. All readings are generated directly without extra conversion or manual calculation, eliminating human error in post-processing steps.

Industry-Leading Hardware Design for Field Operation Efficiency

Built around the high-performance ARM Cortex-M3 architecture processor running the Android operating system, the LD-QX6530P soil redox potential meter delivers stable, fast computing performance even in harsh field conditions. The 3.5-inch color touchscreen is equipped with automatic backlight adjustment and customizable sleep time settings, adapting to different ambient light levels to reduce unnecessary power consumption during long work shifts. The full set of supporting accessories includes dedicated ORP electrodes, reference electrodes and a stainless steel hollow rod that can be directly inserted into fresh or moist soil for in-situ testing, no complicated pre-processing of soil samples is required before measurement. With an IP65 protection grade, the device resists splashes, dust and minor impacts that are common in outdoor field operations, extending its service life even with frequent use in remote sampling sites. Weighing only 4.1KG and packaged in a compact 500380180mm outer case, it is easy to transport between different sampling locations without taking up excess storage space in your field vehicle.

User-Friendly Smart Features Optimized for Field and Lab Workflows

The LD-QX6530P soil redox potential meter is engineered to eliminate common pain points of traditional soil testing equipment. It supports continuous detection, with data collection intervals that can be set in minutes to fit different long-term monitoring requirements. The integrated automatic temperature compensation function, paired with optional manual temperature adjustment, ensures testing accuracy across a wide range of ambient temperature conditions, and supports full pre-test calibration to guarantee consistent performance over long term use. Equipped with a 6000mAh large-capacity built-in lithium battery, the device displays real-time remaining battery level to avoid unexpected power outages during critical sampling work. It uses standard Type-C charging, so users can replenish power with common mobile phone chargers even in locations without dedicated industrial power supplies. The device comes with a massive 5 million data point storage capacity, allowing teams to store months of sampling records for later review. All test results can be exported directly in Excel format to connect with desktop analysis software, or uploaded to a designated regulatory monitoring platform for centralized data management across multiple project sites. The built-in reading lock function automatically captures stable final measurement results, so users do not need to wait and manually record fluctuating readings on site.

Key Application Scenarios of the LD-QX6530P Soil Redox Potential Meter

This versatile soil redox potential meter fits a wide range of B2B use cases, including agricultural soil fertility assessment for large farm operations, wetland ecological research for environmental research institutes, heavy metal contaminated site remediation monitoring for environmental engineering firms, and soil health testing for municipal agricultural and environmental regulatory departments. It can also be used for ORP and pH testing of surface water and groundwater media, expanding its usability for multi-parameter water quality sampling tasks. If you are looking for a reliable, high-performance soil redox potential meter that fits your field testing and lab analysis workflows, the LD-QX6530P is the ideal solution to improve your testing efficiency and reduce manual operation errors. Reach out to our technical team today to discuss your specific testing requirements, and contact us for a quote to get customized support for your project.

FAQ

1. Q: Does this soil redox potential meter comply with official industry testing standards? A: Yes, the LD-QX6530P soil redox potential meter fully conforms to the HJ746-2015 Potentiometric Method for Soil Redox Potential Determination standard, all test results are fully traceable and meet formal regulatory, research and industrial testing requirements.

2. Q: Can I export test data for further analysis on my desktop computer? A: Absolutely. The device supports direct export of all stored test records to standard Excel format, and you can also upload full datasets to a dedicated monitoring platform for centralized team management across multiple sampling sites.

3. Q: Is this soil redox potential meter suitable for long-duration field testing trips in remote locations? A: Yes. The 6000mAh large-capacity built-in lithium battery supports hours of continuous operation, and uses standard Type-C charging that works with common mobile chargers for easy power replenishment even in areas without dedicated industrial power supplies. The IP65 protection grade also ensures stable performance in dusty, splash-prone outdoor environments.
