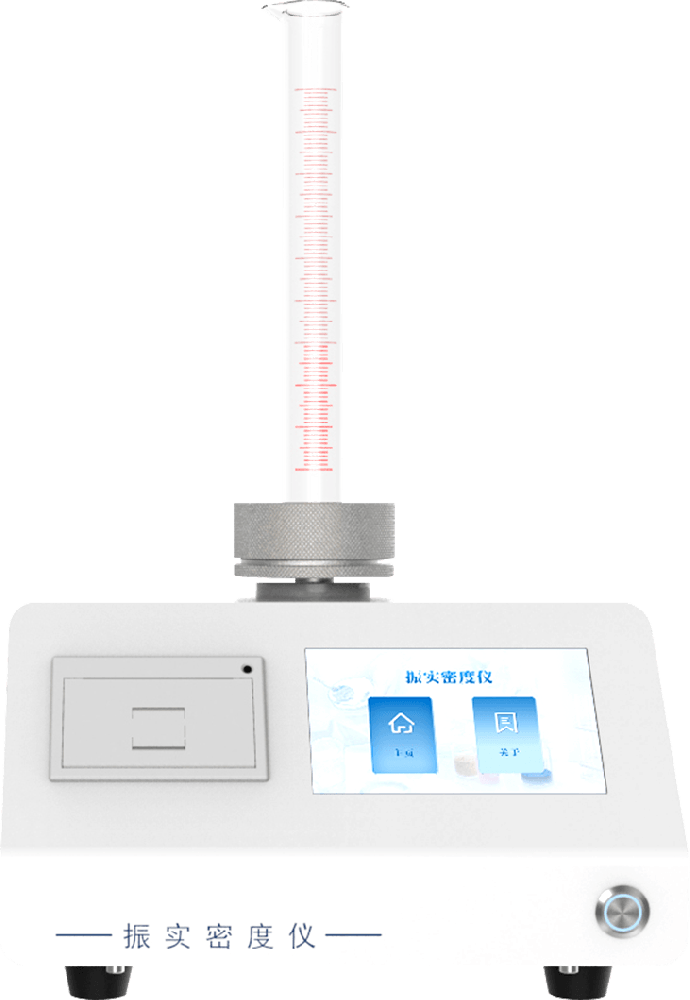

Tapped Density Meter

Tapped Density Meter

  • Product Number:LD-ZS2
  • Product Difference:Dual-station, a powder density testing instrument, features a robust structure and simple operation

Product Introduction

The Vibratory Tester is a powder density testing instrument independently developed and manufactured by Shandong Lainder Intelligent Technology Co., Ltd. in accordance with the standard GB/T 5162-2006/ISO3953:1993 (Determination of Tapped Density of Metal Powders) and with reference to the United States Pharmacopeia. It holds independent intellectual property rights. The instrument covers all indicators specified in GB/T 5162-2006/ISO3953:1993.

The Vibratory Tester comprises components such as a variable-speed motor, vibration assembly, microcomputer, and microprinter. It features a compact and robust structure with simple operation.

Product Features

  • Dustproof and waterproof mask, membrane keypad, and micro LCD display.

  • Vibration unit comprising high-precision gear motor and speed controller.

  • CPU-based intelligent data processing unit.

  • High-resolution thermal printer.

  • Measurement results accurate to four decimal places.

  • Robust instrument structure, aesthetically pleasing design, and user-friendly operation.

Product parameters

Sample Weight≤500.00 g
Sample Volume≤250.00 mL
Vibration Cycles per Run0 to 99,999 cycles (When set to 0 cycles, result output is “Loose Bulk Density”) )
Allowable Motor Torque0.86 N·m
Vibration Frequency0–300 rpm (continuously adjustable)
DisplayLCD display (outputs sample information)
KeysMembrane keys (Easy operation)
WorkstationsTwo workstations can be used simultaneously
Vibration Amplitude3mm, (adjustable)
Power SupplyAC 220V ±10V, 50Hz
Continuous Operation Time<8 hours
Relative Humidity<85%, no condensation
Other RequirementsClean environment free of dust, no mechanical vibration sources or electromagnetic interference nearby
Measurement ErrorSample test accuracy error < ±1%
Measurement AccuracyTest results retain 4 decimal places
