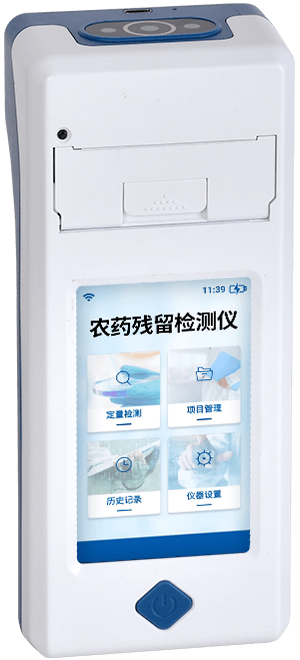

Handheld pesticide residue detector

Handheld pesticide residue detector

  • Product Number:LD-SNC
  • Product Difference:Single-channel handheld model, 4.3-inch high-definition touch screen + customized Android system

Product Introduction

The handheld pesticide residue detector is compact in design, lightweight, and small in size, making it easy to carry to various on-site environments for testing, such as vegetable wholesale markets, supermarkets, shopping malls, and departments of food and drug supervision for the detection of pesticide residues such as chlorpyrifos, thiabendazole, thiophanate-methyl, triazophos, and pyrethroid in vegetables and fruits.

Fluorescent immunoassay is applied in multiple fields including medical diagnosis, tumor research, neuroscience research, drug development, food safety testing, and forensic identification.
① In drug development, it can be used to screen and evaluate the efficacy and safety of drugs.
② In food safety testing, it can detect harmful substances such as additives and residues in food.
③ In forensic identification, it can be used to detect and analyze evidence in biological samples.

Product Features

  • Rapid testing: Utilizes advanced colloidal gold technology for quick results, meeting the on-site testing needs for agricultural products.

  • Smart and portable: Compact design (only 670 grams), shock-resistant and waterproof, easily handling various complex testing environments.

  • Precise Testing: Detects pesticide residues in compliance with national standards.

  • Intelligent System: 4.3-inch HD touchscreen + custom Android system, with built-in intelligent judgment algorithms for simple and intuitive operation.

  • Data connectivity: Supports real-time Wi-Fi uploading, with testing data directly transmitted to regulatory platforms, enabling full traceability throughout the process.

  • Instant output: Built-in high-speed thermal printer allows on-site printing of testing reports with QR codes.

Product parameters

Screen4.3-inch touchscreen, resolution 800x480, internal storage 1+8GB
Operating SystemAndroid 4.4
Performance StandardsYY/T 1792-2021 Fluorescent Immunoassay Analyzer
Detection MethodReflective Photometric Detection
Adaptor Card Holder70mm x 20mm
LanguageChinese/ English
Storage Capacity100,000+
AccuracyError Value ≤ 5%
StabilitySW (Coefficient of Variation) ≤ 5%
RepeatabilityCV (Coefficient of Variation) ≤ 3%
Resolution0.001

Detection Channel

Single Channel
Detection Time< 5 seconds
Built-in FunctionsBuilt-in quality control functions, with self-testing capabilities for both the device and test cards; Built-in card detection functionality, no test without a card
Testing MethodIncubation testing, rapid testing (re-verification of test data)
Testing CurveCan verify the test results of the reagent card to prevent misjudgment
Test ResultsReports test items, results of the tested substance, testing units, inspected units, inspector, testing time, detection limit, etc. can be displayed on the touchscreen and printed via the built-in printer

Project Management

Supports expandable testing project functionality
Interface SettingsCan modify headers and footer information to flexibly display instrument information
Data TransmissionWiFi, Bluetooth, Type-C
Data ProcessingData aggregation and upload to regulatory platforms via communication ports
Temperature RangeThe testing channel integrates incubation and testing, with a temperature range of room temperature +5°C to 60°C
PrinterThermal printer (thermal paper: 57×20 mm)
Power supplyInput: AC 100V–240V/0.3A, 50Hz; Output: DC 5V/2A
Battery capacity6000 mAh, with battery level display
Operating environmentTemperature: 0°C to 50°C, Humidity 0–90%
Dimensions and Weight206 mm × 85 mm × 60 mm, 670 g
